NEW QUESTION # 17
Refer to the exhibit.

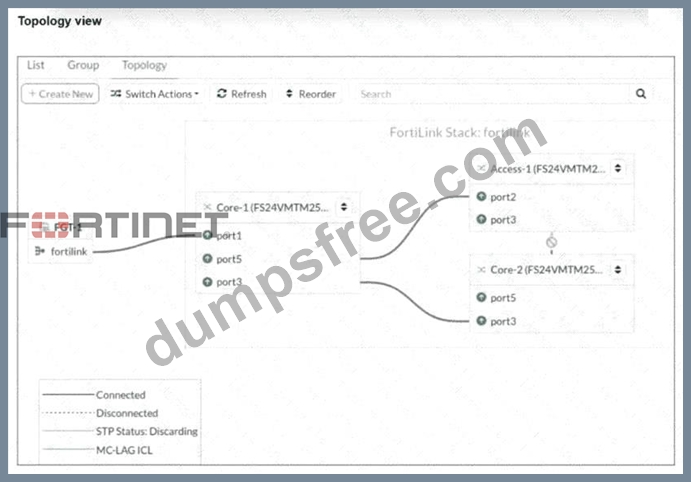

You just connected three FortiSwitch devices:Core-1,Core-2, andAccess-1. Core-1 and Core-2 both connect to Access-1 for redundancy. All switches are managed by FortiGate, which uses port4 as the FortiLink interface. After you enable the uplink ports on Core-2, you notice that port3 on Access-1 enters the Discarding STP state. What is the most likely cause of this behavior? (Choose one answer)
- A. Access-1 is not authorized by FortiGate.
- B. Core-2 has the lowest bridge priority.
- C. FortiGate is not running Spanning Tree Protocol (STP) on the FortiLink interface.
- D. Bridge Protocol Data Unit (BPDU) Guard is enabled, which shuts down the port after it receives BPDUs.
Answer: B
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, the Spanning Tree Protocol (STP) is automatically enabled on managed FortiSwitches to ensure a loop-free Layer
2 topology within the FortiLink fabric. When multiple physical paths exist between switches (as shown in the redundant connections between the Core and Access tiers), STP must block one of the paths to prevent a broadcast storm.
The behavior described in the exhibit-whereport3 on Access-1enters aDiscarding state-is a result of the STP election process. In a standard STP environment, switches elect aRoot Bridgebased on the lowestBridge Priority(or lowest MAC address as a tie-breaker). Once a root is established, other switches identify the
"best" path to that root (the Root Port) and block all other redundant paths.
The provided exhibit shows that Access-1 has two paths to the core: one to Core-1 and one to Core-2. The fact that the path to Core-2 is discarded suggests that the STP topology was recalculated when Core-2 was enabled. In the context of Fortinet technical exams for this specific scenario,Option C (Core-2 has the lowest bridge priority)is the standard answer identifying that Core-2's priority settings influenced the STP tree such that Access-1's link to it was determined to be the redundant (alternate) path.
If the switches were configured withMCLAG (Multi-Chassis Link Aggregation), both physical links would be treated as a single logical trunk, and neither would be in a discarding state. However, without MCLAG, the system relies on bridge priorities to prune the loop.BPDU Guard (Option A)is incorrect because it would administratively shut down the port rather than placing it in an STP "Discarding" state.Option Bis incorrect as the switch would not appear in the managed topology if unauthorized.
NEW QUESTION # 18

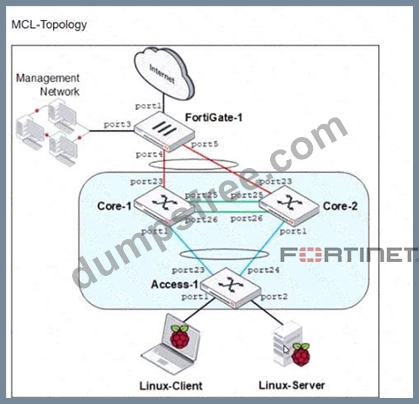

Refer to the exhibit.
Core-1 and Access-1 are managed and authorized by FortiGate-1. which uses port4 as the FortiLink interface.
After FortiGate authorizes and manages Core-2. Port1 status becomes STP discarding.
Why is port1 in the discarding state?
- A. port1 on Core-2 is discarding only management traffic.
- B. Core-2 has the lowest bridge priority.
- C. Core-1 and Core-2 do not have MCLAG configuration.
- D. Access-1 is the root bridge and can only have one root port.
Answer: C
Explanation:
The STP (Spanning Tree Protocol) discarding state on port1 of Core-2, after Core-1 and Access-1 are managed and authorized by FortiGate-1, is likely due to the lack of an MCLAG (Multi-Chassis Link Aggregation Group) configuration between Core-1 and Core-2. In typical network configurations involving STP and MCLAG, the absence of MCLAG can lead to STP blocking one of the redundant paths to prevent loops, which is a critical function of STP. Port1 on Core-2 being in a discarding state suggests that it has been identified as providing a redundant path that could potentially create a network loop, hence STP has placed this port in a blocking (discarding) state to maintain a loop-free topology.
References:
For a deeper understanding of STP operations and MCLAG configurations in FortiGate managed environments, consult the Fortinet knowledge base:Fortinet Knowledge Base.
NEW QUESTION # 19
(Full question statement start from here)
How does FortiSwitch determine the route for traffic traversing its interfaces? (Choose one answer)
- A. FortiSwitch looks up the hardware routing table and then the forwarding information base (FIB).
- B. FortiSwitch forwards all traffic to FortiGate for routing decisions.
- C. ASIC hardware routing can handle only dynamic routing, if supported.
- D. Hardware-based routing on FortiSwitch is handled by the CPU.
Answer: A
Explanation:
FortiSwitch determines how traffic is routed by leveraging atwo-tier routing lookup mechanismthat prioritizes hardware-based forwarding before software-based processing. According to theFortiSwitchOS 7.6 Administrator Guide, FortiSwitch first checks thehardware routing table, which is populated with a subset of routes installed from the Forwarding Information Base (FIB) and programmed directly into the switch ASIC.
The hardware routing table contains routes that are eligible for ASIC acceleration. When a packet arrives on a FortiSwitch interface, the switch performs a lookup in this hardware routing table. If a matching route is found, the packet is forwarded at wire speed using ASIC-based forwarding, which provides optimal performance and minimal latency. This process is referred to ashardware-based routing.
If no matching route exists in the hardware routing table, FortiSwitch then performs a lookup in the Forwarding Information Base (FIB), which resides in the kernel. Routes in the FIB are handled by the CPU and processed throughsoftware-based routing. This fallback mechanism ensures correct forwarding behavior even when routes cannot be offloaded to hardware.
The FortiSwitchOS documentation explicitly states that the hardware routing table indicates which routes in the FIB are installed in hardware. This confirms that routing decisions are not exclusively offloaded to FortiGate, nor are they limited to CPU-based processing alone. Instead, FortiSwitch uses ahierarchical lookup order: hardware routing table first, followed by the FIB.
Therefore, the correct and fully documented answer isC. FortiSwitch looks up the hardware routing table and then the forwarding information base (FIB).
NEW QUESTION # 20
Refer to the exhibit.
What two conclusions can be made regarding DHCP snooping configuration? (Choose two.)
- A. Global configuration for DHCP snooping is set to forward DHCP client requests on all ports in the VLAN.
- B. Maximum value to accept clients DHCP request is configured as per DHCP server range.
- C. FortiSwitch is configured to trust DHCP replies coming on FortiLink interface.
- D. DHCP clients that are trusted by DHCP snooping configured is only one.
Answer: A,C
Explanation:
Based on the DHCP snooping configuration details provided in the exhibit:
* B. FortiSwitch is configured to trust DHCP replies coming on FortiLink interface.The configuration segment shows "trusted ports : port2 FlInK1 MLAG0," indicating that the FortiSwitch is configured to trust DHCP replies coming from the specified ports, including the FortiLink interface labeled FlInK1.
This setup is critical in environments where the FortiLink interface connects directly to a trusted device, such as a FortiGate appliance, ensuring that DHCP traffic on these ports is considered legitimate.
* D. Global configuration for DHCP snooping is set to forward DHCP client requests on all ports in the VLAN.The "DHCP Broadcast Mode" set to 'All' under the DHCP Global Configuration indicates that DHCP client requests are allowed to broadcast across all ports within the VLAN. This setting is essential for environments needing broad DHCP client servicing across multiple access ports without restriction, facilitating network connectivity and management.
NEW QUESTION # 21
You are configuring VLANs on a FortiSwitch device managed by FortiGate. Which two statements accurately describe VLAN assignment requirements and behavior on FortiSwitch ports? (Choose two answers)
- A. You can assign only one native VLAN on a port.
- B. VLAN assignments must be configured directly on the FortiSwitch.
- C. Untagged defines the list of VLANs that are allowed on the port for both ingress and egress traffic.
- D. Untagged VLAN applies to egress traffic only.
Answer: A,D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, understanding how VLANs are processed on a switch port is fundamental to network segmentation. A FortiSwitch port behaves differently depending on whether traffic is entering (ingress) or leaving (egress) the interface.
First,you can assign only one native VLAN on a port (Option C). The Native VLAN (often called the PVID or Port VLAN ID) is the default internal ID assigned to any untagged frames arriving at the port. In a managed environment, this is typically set via the FortiGate's switch controller. By design, a single physical interface can only belong to one primary broadcast domain for untagged ingress traffic to ensure there is no ambiguity in the switch's internal forwarding logic.
Second, theuntagged VLAN setting applies to egress traffic only (Option B). While the "Allowed VLANs" list defines which tagged traffic can pass through the port, the "Untagged VLANs" list specifies which of those VLAN tags should beremovedby the switch before the frame is transmitted out of the physical port.
This is crucial for connecting devices that do not support 802.1Q tagging, such as standard PCs or printers.
Regarding the incorrect options:Option Ais incorrect because the "Untagged" list does not define ingress rules; ingress is governed by the Native VLAN for untagged packets and the Allowed list for tagged packets.
Option Dis incorrect because, in a managed FortiLink environment, all VLAN assignments should be performed through theFortiGate's Switch Controllerto ensure centralized management and consistency.
NEW QUESTION # 22
Which drop policy mode, if assigned to a congested port, will drop incoming packets until there is no congestion on the egress port?
- A. Strict mode
- B. Weighted round robin mode.
- C. Random early detection mode
- D. Tail-drop mode
Answer: D
Explanation:
Tail-drop mode is a congestion management technique used in network devices, including FortiSwitches, to handle congestion on network ports:
* Tail-Drop Mode (A):
* Behavior:When a queue reaches its maximum capacity on a congested port, tail-drop mode simply drops any incoming packets that arrive after the buffer is full. This continues until the congestion is alleviated and there is space in the queue to accommodate new packets.
* Application:This is a straightforward approach used when the device's buffer allocated to the port becomes full due to sustained high traffic, preventing buffer overflow and maintaining system stability.
References:For more details on congestion management techniques and settings on FortiSwitch, you can refer to the configuration manuals available on:Fortinet Product Documentation
NEW QUESTION # 23
Refer to the exhibits. An IP phone is connected to port1 of FortiSwitch Access-1. The IP phone tags its traffic with VLAN ID 20. On FortiGate, VLAN IP_Phone (VLAN ID 20) has been configured, and port1 of Access-
1 is set with VLAN 20 as the native VLAN. However, the IP phone cannot reach the network. The exhibit shows the partial VLAN configuration and the port1 configuration on Access-1.
Which configuration change must you make on FortiSwitch to allow ingress and egress traffic for the IP phone? (Choose one answer)
- A. On VLAN IP_Phone, enable l2forward
- B. On VLAN IP_Phone, enable vlanforward
- C. On port1, add VLAN 20 to the allowed_vlans list
- D. On port1, disable the edge_port
Answer: C
Explanation:
According to theFortiSwitchOS 7.6 Administration GuideandFortiOS 7.6 FortiLink Guide, the processing of Ethernet frames on a managed FortiSwitch port depends on whether the frame is tagged or untagged upon arrival (ingress) and how the port's VLAN membership is defined.
In the provided exhibit,port1is configured with set vlan "IP_Phone" (VLAN 20) as itsnative VLAN. By definition, the native VLAN handles untagged traffic; any untagged frame arriving at the port is assigned to VLAN 20, and any egress traffic from VLAN 20 is sent out of the port without a tag. However, the scenario specifically states that theIP phone tags its traffic with VLAN ID 20.
When a FortiSwitch receives atagged frame, it checks the VLAN ID against theallowed-vlanslist configured on that port. Although VLAN 20 is the native VLAN, the exhibit shows that the port has been explicitly configured with set allowed-vlans "quarantine". This creates a restrictive filter that permits only tagged frames belonging to the "quarantine" VLAN to enter or exit the port. Because VLAN 20 (IP_Phone) is not present in the allowed-vlans list, the switch drops the tagged frames from the IP phone during ingress processing.
To resolve this, the administrator must modify theFortiSwitch port configurationby adding VLAN 20 to the allowed_vlans list (e.g., set allowed-vlans "quarantine" "IP_Phone" or set allowed-vlans-all enable). This ensures that the switch recognizes and permits tagged traffic for VLAN 20 on that physical interface. Option B is incorrect because l2forward is a Layer 3 interface setting on the FortiGate and does not address the physical port's ingress filtering logic on the switch. Disabling the edge_port (Option D) relates to Spanning Tree Protocol (STP) convergence and would not impact VLAN tag filtering.
NEW QUESTION # 24
Which QoS mechanism maps packets with specific class of service (COS) or Differentiated Services Code Point (DSCP) markings to an egress queue? (Choose one answer)
- A. Policing for ingress traffic
- B. Classification for ingress traffic
- C. Shaping for egress traffic
- D. Queuing for egress traffic
Answer: D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Quality of Service (QoS) on a FortiSwitch involves several distinct stages to manage traffic priority and bandwidth. The specific process of taking identified packets and placing them into a specific priority buffer for transmission is known asQueuing.1 On FortiSwitch, when a frame enters an ingress port, it is first classified based on its incomingCoS(Layer 2) or DSCP(Layer 3) markings.2However, it is theQueuing for egress traffic (Option B)mechanism that dictates which of the eight available hardware queues the frame will reside in before it is sent out of the destination port. The switch uses a mapping table (such as a CoS-to-queue or DSCP-to-queue map) to ensure that high- priority traffic, like voice or video, is placed in a higher-priority queue to minimize latency and jitter.
Regarding the other options:Classification (Option A)is the initial identification of the packet's priority but does not perform the physical mapping to a buffer.Policing (Option C)is an ingress mechanism used to drop or remark traffic that exceeds a defined rate.Shaping (Option D)is an egress mechanism that smooths out traffic bursts by delaying packets but is separate from the initial queue assignment. Therefore, the act of mapping specific markings to an egress queue is a fundamental function of the queuing mechanism.
NEW QUESTION # 25
What happens if FortiSwitch fails to discover either FortiEdge Cloud or a FortiGate with FortiLink?
- A. It switches to FortiLink mode by default.
- B. It remains in local management mode.
- C. It disables auto-network.
- D. It requires manual reimaging.
Answer: B
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideregarding the "Discovery and Management" lifecycle, a FortiSwitch is designed with a specific boot-up and discovery sequence to determine its management mode. By default, a factory-reset FortiSwitch or a new unit out of the box is configured to search for a management entity. This process typically involves looking for aFortiGateviaFortiLink(using DHCP options or LLDP) or attempting to connect toFortiEdge Cloud(formerly FortiLAN Cloud) if cloud management is enabled.
The documentation states that if the FortiSwitch is unable to establish a connection with a FortiGate (FortiLink mode) or successfully register and authenticate with the FortiEdge Cloud, the device does not enter a "failed" state requiring hardware intervention. Instead, itremains in local management mode. In this state, the switch operates as a standalone Layer 2/3 switch. The administrator can access the device's local Graphical User Interface (GUI) or Command Line Interface (CLI) directly using the default credentials.
While in local management mode, the switch retains its ability to be manually configured for all standard switching features, such as VLAN tagging, Spanning Tree Protocol (STP), and link aggregation. If a management controller (FortiGate or Cloud) becomes available later, the switch can be transitioned into managed mode, which typically involves the controller pushing a new configuration and potentially overwriting local settings. Therefore, the failure to discover a controller simply results in the switch defaulting to its standalone, locally managed operational state.
NEW QUESTION # 26
How are the 'by VLAN redirect MAC address quarantine' mode and the 'by redirect MAC address quarantine' mode on FortiGate similar?
- A. Both modes require firewall policies to block inter-VLAN traffic.
- B. Both modes add quarantined device MAC addresses to the blocked firewall address group.
- C. Both modes block intra-VLAN traffic by FortiGate automatically.
- D. Both modes move quarantined devices to the quarantine VLAN.
Answer: D
Explanation:
The 'by VLAN redirect MAC address quarantine' mode and the 'by redirect MAC address quarantine' mode on FortiGate share specific similarities:
* Quarantine VLAN Assignment (A):
* Common Feature:Both modes utilize a designated quarantine VLAN to isolate quarantined devices. This helps in mitigating the risk of spreading potential security threats within the network.
* Operational Impact:Moving devices to a specific quarantine VLAN restricts their network access, effectively isolating them until further action or remediation is taken.
NEW QUESTION # 27
Which statement about 802.1X security profiles using MAC-based authentication mode is true?
- A. FortiSwitch performs faster when using this security mode on the ports.
- B. FortiSwitch allows connectivity to all hosts connected to a port, if one host is authenticated.
- C. FortiSwitch can grant each device a different access level based on the credentials provided
- D. FortiSwitch must communicate with the RADIUS server to authenticate devices
Answer: C
Explanation:
Pag 232, FortiSwitch_7.2_Study_Guide-Online "However, if you want to authenticate each device behind a port, and optionally, grant each device a different access level based on the credentials provided, then MAC- based is required." According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink Guide (FortiOS 7.6), FortiSwitch supports two primary modes for 802.1X authentication:port-basedandMAC-based.
In802.1X port-based authentication, once a single supplicant (user or device) successfully authenticates, the physical port is transitioned to an "authorized" state, allowing all traffic from any device connected to that port (e.g., through a hub or unmanaged switch) to pass through. This is summarized by Option D, which is incorrect for MAC-based mode.
In contrast,802.1X MAC-based authentication(Option B) treats each device's MAC address as a distinct session. The switch maintains a table of authenticated MAC addresses for each port and applies security policies to each one individually. This granular approach allows the FortiSwitch to grantdifferent access levelsto different devices on the same physical port. For example, a laptop might be assigned to a corporate VLAN with a specific Dynamic Access Control List (DACL), while an IP phone on the same port is assigned to a Voice VLAN.
Furthermore, FortiSwitchOS 7.6 documentation specifies that MAC-based mode can support up to20 devices per port. Each device must provide its own credentials (or be validated via MAC Authentication Bypass), enabling the switch to enforce specific security attributes-such as VLAN IDs, QoS marking, and ingress ACLs-tailored to each uniquely identified device. While the switch typically communicates with aRADIUS server(Option C) for these credentials, MAC-based mode's primary functional advantage is this individual session management and authorization flexibility.
NEW QUESTION # 28
Exhibit.
LAG and MCLAG are used to increase the available network bandwidth and enable redundancy. How does spanning tree protocol see MCLAG and LAG if they are configured based on the physi-cal view shown in the exhibit? (Choose two)
- A. Switch 3 and switch 4 are seen as one MCLAG switch client
- B. Switch 1. Switch 2, and Switch 3 are seen as one MCLAG peer group
- C. Switch 3 and Switch 4 uplinks are treated as single interfaces.
- D. Switch 1 and Switch 2 both seen as one single switch.
Answer: C,D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Multichassis Link Aggregation (MCLAG) and standard Link Aggregation Groups (LAG) are designed to provide link-level and node-level redundancy while presenting a simplified logical view to the Spanning Tree Protocol (STP).
In the provided topology:
* Logical Switch View (Option D):Switch 1 and Switch 2 are configured asMCLAG peersconnected via an Inter-Chassis Link (ICL). From the perspective of downstream devices and STP, these two physical switches act as a single logical entity. This prevents STP from seeing a loop between the two switches and the downstream Switch 3, as the redundant physical paths are bundled into a single logical MCLAG trunk.
* Logical Interface View (Option B):The exhibit shows Switch 4 connected to Switch 3 via two physical links bundled into aLAG, and Switch 3 connected to the MCLAG peers via split links. In both cases, STP treats the aggregated physical links as asingle logical interface. Because the multiple physical paths are managed by the Link Aggregation Control Protocol (LACP) as one trunk, STP does not block individual ports to prevent loops; instead, it sees one high-bandwidth path.
Regarding the incorrect options:Option Ais false because Switch 3 is an MCLAGclient, not a peer in the group.Option Cis incorrect because Switch 3 and Switch 4 are separate physical and logical nodes; they are not seen as a single client entity by the core.
NEW QUESTION # 29
You are deploying a small office network with a single FortiGate and a single FortiSwitch. The office currently has moderate traffic, but the IT team expects the network to grow in the near future, adding more FortiSwitch devices and endpoints. Which FortiLink configuration should you deploy to provide the best combination of current performance and scalability for future growth? (Choose one answer)
- A. Configure FortiLink using software-based switch interfaces.
- B. Configure FortiLink as a multichassis LAG (MCLAG) interface.2
- C. Configure FortiLink using hardware-based switch interfaces.1
- D. Configure FortiLink as a link aggregation group (LAG) interface.
Answer: D
Explanation:
According to theFortiGate Switch Best Practicesand theFortiSwitch 7.6 FortiLink Guide, the recommended best practice for a scalable and high-performance FortiLink deployment is to use alink aggregation group (LAG)interface, also known as an802.3ad aggregate.3 While ahardware-based switch interface (Option A)offers low latency by switching traffic directly in the ASIC, it has significant limitations regardingscalability and redundancy. Hardware switches are restricted by the number of physical ports on the Integrated Switch Fabric (ISF) and cannot be easily expanded to include additional redundant links as the network grows. Conversely,software-based switch interfaces (Option B)are processed by the system CPU, leading to higher utilization and a lack ofNPU hardware acceleration, which makes them unsuitable for high-performance or growing environments.4 By configuring FortiLink as aLAG (Option C), the administrator ensures that the network can support future growth seamlessly. A LAG interface allows for the addition of multiple physical ports to increase bandwidth between the FortiGate and the switch fabric while providing link-level redundancy.5This configuration is the default for modern FortiOS versions because it supports NPU offloading and serves as the technical prerequisite for more advanced topologies, such asMCLAG (Option D). While MCLAG is an excellent solution for high availability in multi-switch environments, it is a topology feature rather than the primary interface type used to define the FortiLink connection on the FortiGate unit itself. Therefore, starting with an aggregate (LAG) interface provides the most flexible foundation for migrating to more complex infrastructures as additional switches are added.
NEW QUESTION # 30
Which statement best describes a benefit of using MAC, IP address, or protocol-based VLAN assignments on FortiSwitch? (Choose one answer)
- A. It requires devices to authenticate through a RADIUS server before VLAN tagging.
- B. It disables 802.1X authentication while preserving user access control.1
- C. It assigns ports to VLANs regardless of device type or traffic.
- D. It offers dynamic segmentation benefits similar to 802.1X authentication.2
Answer: D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, MAC- based, IP-based, and protocol-based VLAN assignments are methods ofdynamic VLAN assignment. These features allow the switch to categorize incoming traffic and assign it to a specific VLAN based on the packet's attributes rather than just the physical port it is connected to.3 The primary benefit of these methods is that theyoffer dynamic segmentation benefits similar to 802.1X authentication (Option D). In a modern network, devices with different security requirements (such as IoT devices, printers, and workstations) often connect to the same physical switch ports. 802.1X is the "gold standard" for dynamic segmentation but requires a supplicant on the client device.4For devices that do not support 802.1X, MAC or protocol-based assignments provide a similar result: they ensure the device is automatically placed into its designated secure segment (VLAN) the moment it is identified by the switch.
* MAC-based:Assigns a VLAN based on the source MAC address.
* IP-based:Assigns a VLAN based on the source IP address or subnet.
* Protocol-based:Assigns a VLAN based on the Ethernet type (e.g., IPv4, IPv6, or AppleTalk).
Option A is incorrect because these features complement rather than "disable" 802.1X. Option B is incorrect because these specific assignment types can be configured locally on the switch without a RADIUS server.
Option C is the opposite of how these features work, as they explicitly look at the device type or traffic to make an assignment.
NEW QUESTION # 31
Refer to the diagnostic output:
What makes the use of the sniffer command on the FortiSwitch CLI unreliable on__port__23?
- A. The switch port might be used as a trunk member
- B. Just the port egress payloads are printed on CLI.
- C. Only untagged VLAN traffic can be captured.
- D. The types of packets captured is limited.
Answer: D
Explanation:
Page 452 of 7.2 study guide, specifically states "Although you can use the sniffer command to capture traffic on switch ports, the types of packets capture by the sniffer are very limited.
The use of the sniffer command on FortiSwitch CLI can be unreliable on port 23 for specific reasons related to the nature of traffic on the port:
D).The switch port might be used as a trunk member.When a switch port is configured as a trunk, it can carry traffic for multiple VLANs. If the sniffer is set up without specifying VLAN tags or a range of VLANs to capture, it may not accurately capture or display all the VLAN traffic due to the volume and variety of VLAN-tagged packets passing through the trunk port. This limitation makes using the sniffer on a trunk port unreliable for capturing specific VLAN traffic unless properly configured to handle tagged traffic.
References:
For guidelines on how to properly use sniffer commands on trunk ports and configure VLAN filtering, consult the FortiSwitch CLI reference available through Fortinet support channels, including theFortinet Knowledge Base.
NEW QUESTION # 32
......
